BikeBlink Part I

m204_cover1_2015-478x480
Monkeylight m204 spoke light from Monkeylectric

About 10 months ago I had a friend who got hit by a car while on a bike. This lead to stepping up the visibility game. One of the improvements were bike spoke lights. They serve to increase side visibility while riding.

When I first saw this I was just getting into the maker space and said to myself, perhaps stupidly, “I can make that.” Then went to work.

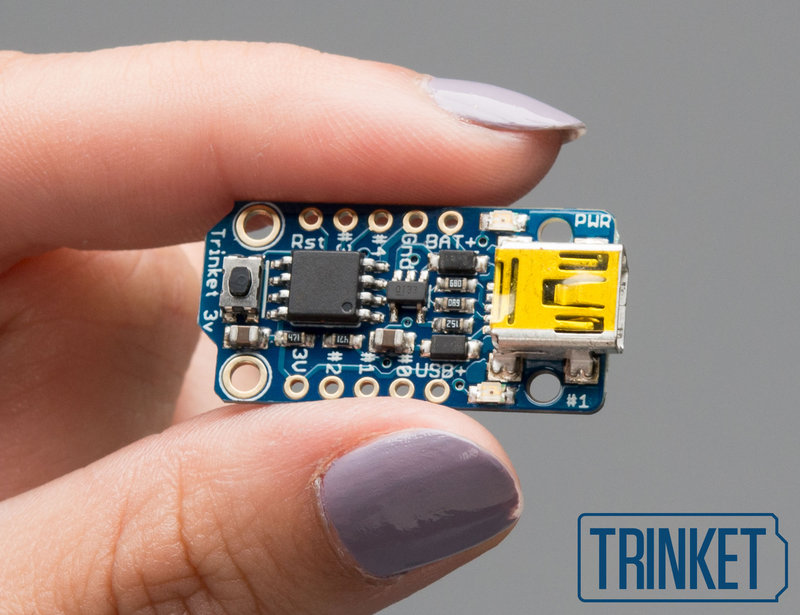

I started researching and landed on the Adafruit Trinket as my microcontroller of choice. It’s small, powerful enough and has everything I needed to run my LEDs.


The Trinket has ~5.25K bytes of space available for use, and 512 bytes of ram. These limitations would be a good to work with as a challenge to write more efficient code.

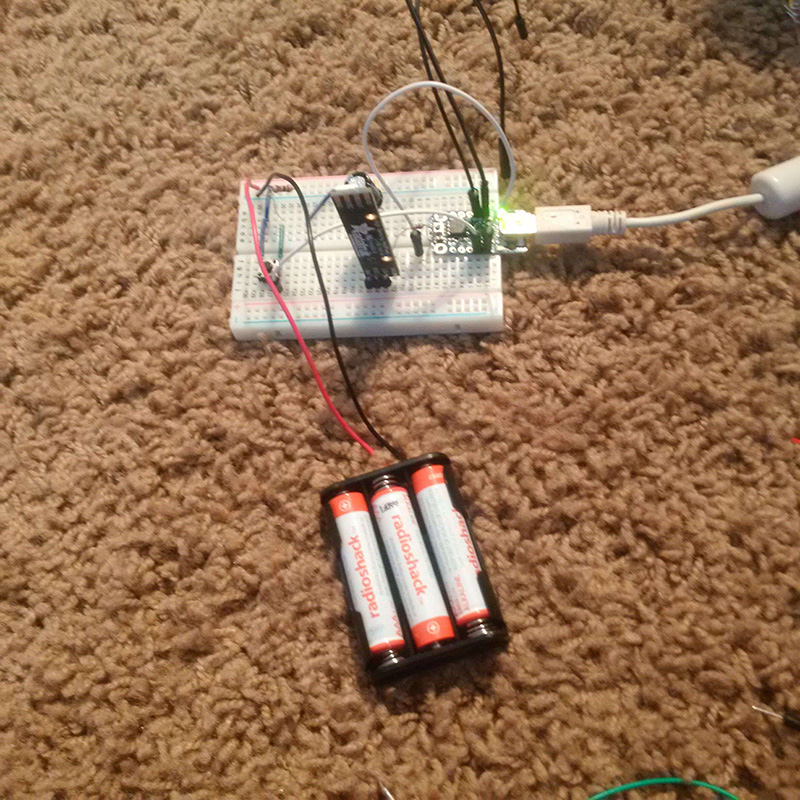

breadboard

After some time I got a working test which flashed though 4 different LED modes switching modes at a press of the button. As an added bonus I added the mode into E2PROM(non-volatile memory). This allows the device to turn on in the mode it was using when power was disconnected.

The code is up on GitHub.
